SIMPLE_DIODE_SENSOR

Published:2009/7/21 20:44:00 Author:Jessie | From:SeekIC

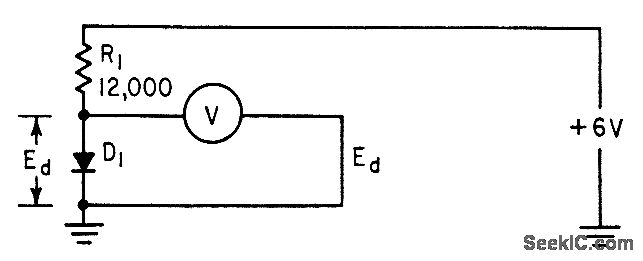

Meter measures voltage drop across germanium diode (such as 1N2326), which varies linearly with temperature from near absolute zero to a high limit around 45℃, which is upper limit of diode base material.-L. E. Barton, Measuring Temperature with Diodes and Transistors, Electronics, 35;18, p 38-40.
