SERIES_MOTOR_SPEED_CONTROL

Published:2009/7/7 1:45:00 Author:May | From:SeekIC

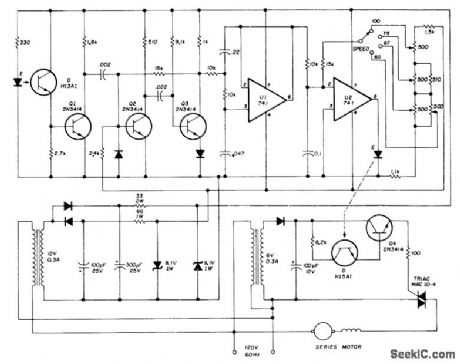

Adjustable-speed solid-state motor drive replaces governor in Kleinschmidt RTTY page printer, to give knob-controlled speed range of 60 to 100 WPM.Notched (33-slot) sheet-aluminum disk serving as pulse wheel is mounted on motor shaft and rotates in gap bemoan LED and phototransistor of GE H13A1 optical coupler to form motor-speed sensor or tachometer. Pulses from tachometer, squared by Q1, trigger mono MVBR Q2-Q3 which converts signal to constant-amplitude constant-width pulses having repetition rate proportional to motor speed. Opamp U1 forms three-pole Butterworth active filter that develops required average DC voltage from pulse train. Output current of U1 is compared to reference current derived from speed control circuit, for switching U2 sharply on and off as speed varies above and below desired value. U2 in turn switches motor on and off through H15A1 optical coupler and Q4 in gate circuit of triac. Second coupler isolates control circuit from AC line.-K. H. Sucker, Electronic Speed Control for RTTY Machines, Ham Radio, Aug.1974,p50-54.
