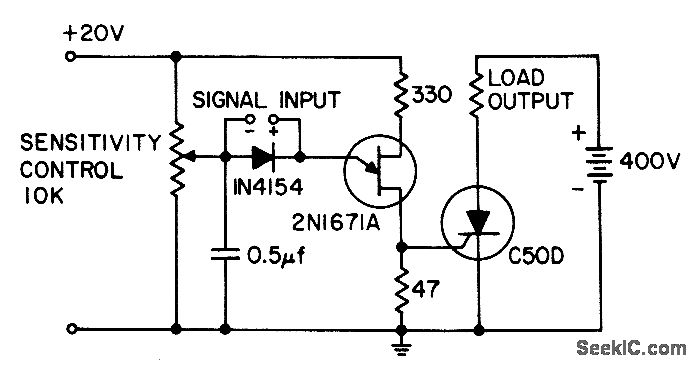

SENSITIVE_D_C_POWER_SWITCH

Published:2009/7/24 4:17:00 Author:Jessie | From:SeekIC

Stays on after being triggered, to give latching action. Power input is 2.5 microwatts, power output is 44,000, and power gain is 92 db.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 331.
