SENSITIVE_A_C_POWER_SWITCH

Published:2009/7/24 4:12:00 Author:Jessie | From:SeekIC

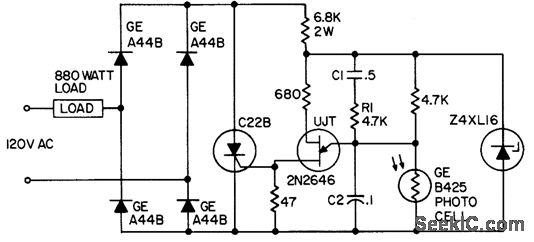

Used to switch load in response to gradually changing signal, as from photocell or thermistor.Provides snap-action switching from full on to full oil, with differential between switching conditions adjustable over wide range by changing C1 and R1.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 331.
