SCS_CONTACI_ISOLATOR_2

Published:2009/7/24 4:25:00 Author:Jessie | From:SeekIC

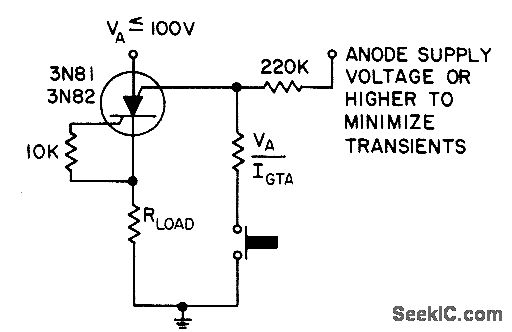

Eliminates contact t bounce when switch is closed to trigger scs, with both switch and load grounded.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 433.
