SCR_SWITCHING

Published:2009/7/16 10:20:00 Author:Jessie | From:SeekIC

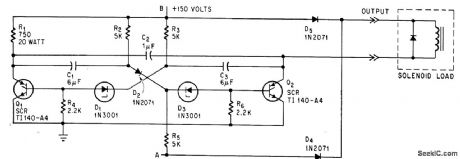

Scr's switch 0.75 amp into solenoid load at 20 cps with high reliability, simplicity, and low cost. For monostable mode, remove supply voltage form B and apply single +150-V pulse to A.-H. D. Valliant, Scr Multivibrator Switches Reliably, Electronics,38:5, p 95.
