SCR_REED_A_C_SWITCH

Published:2009/7/24 4:18:00 Author:Jessie | From:SeekIC

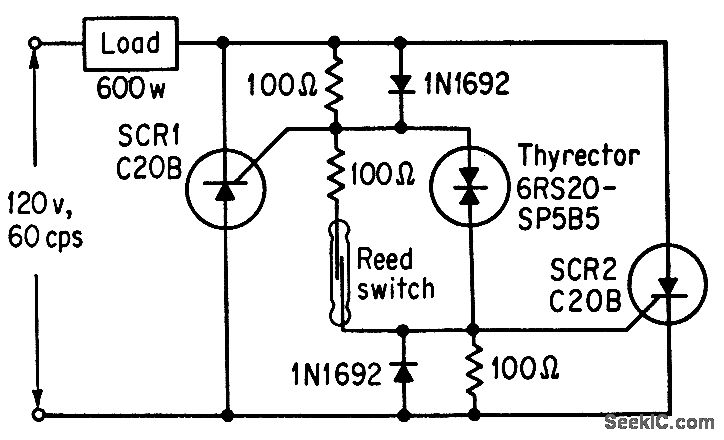

Magnetic reed switch makes ideal trigger for silicon controlled rectifiers, even though nine components are required for switching 600.w load.-M. P. Southworth, Bidirectional Static Switch Simplifies Ac Control, Control Engineering, March 1964, p 75-76.
