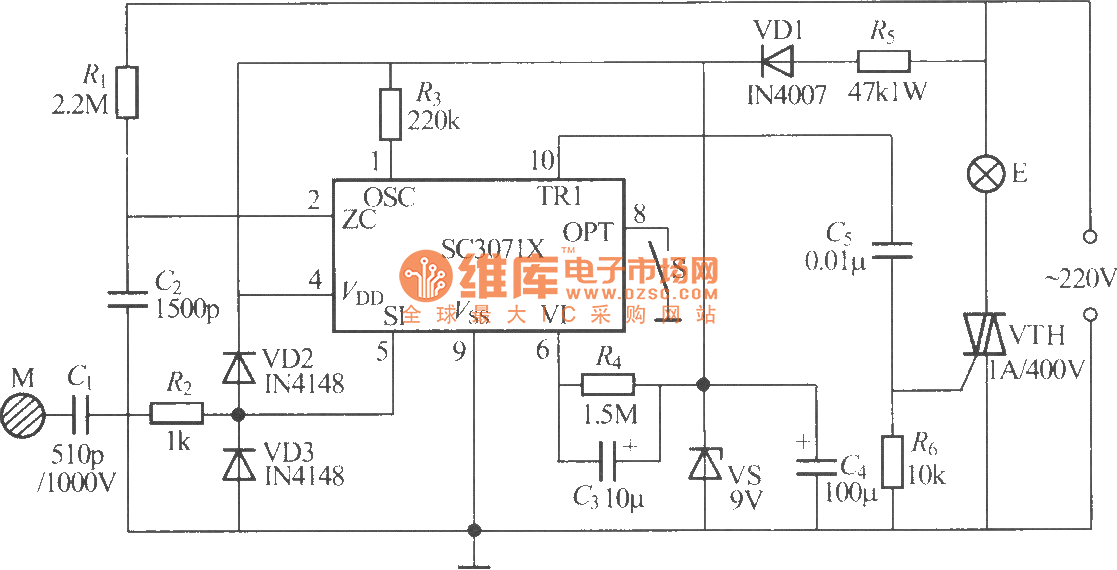

SC3071X touch stepping dimming light circuit

Published:2011/4/18 8:57:00 Author:Nicole | Keyword: dimming light | From:SeekIC

SC3071X is produced by Hangzhou Silan Microelectronics Co. Ltd. compared to SC3071, it has one more mode to select, so SC3071X also can choose on or off switch 2 steps control, besides controlling low brightness, middle brightness, most brightness, turn-off four steps.
