Resistor detected motor reversing control circuit

Published:2012/11/20 21:10:00 Author:Ecco | Keyword: Resistor detected motor , reversing control | From:SeekIC

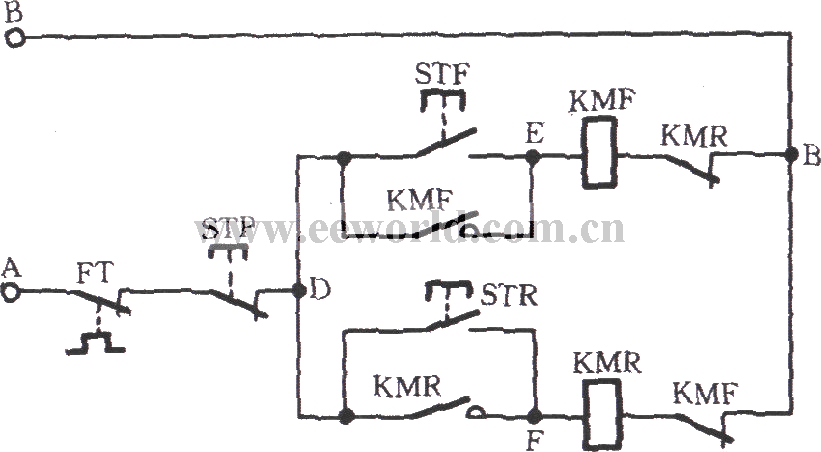

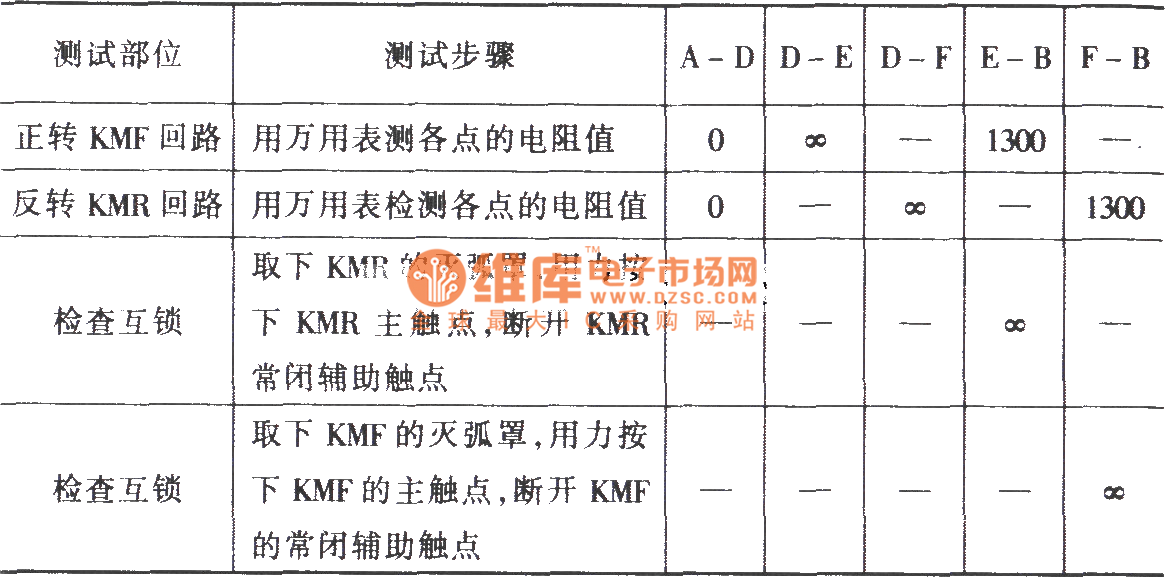

Motor reversing control circuit has more joints, so it is easy to make mistakes in the newly installed or renovated cases. Resistor method for detection can avoid accidents, and the circuit is shown in the figure. The multimeter dial in R × 100Ω stopper, under normal circumstances, the values between the various points of the circuit are ​​shown in the following table.
