Remote_temperature_sensor_output_referenced_to_ground

Published:2009/7/24 2:06:00 Author:Jessie | From:SeekIC

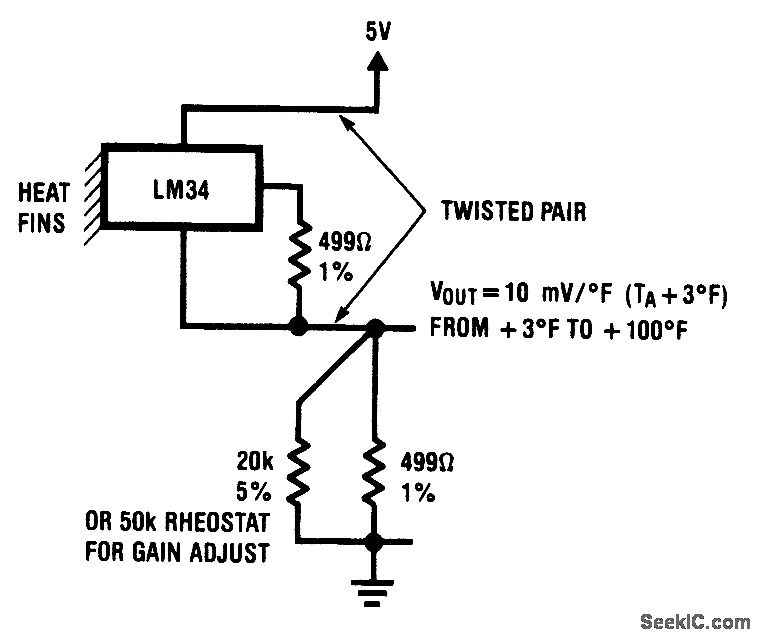

Fig. 13-5 This circuit is similar to that of Fig. 13-4, except that is not grounded and the output is referred to ground (slightly above ground). National Semicondutor Linear Applications Handbook 1991 p 1076.
