The pulse delay circuit composed of gate circuit

Published:2011/6/29 2:58:00 Author:Rebekka | Keyword: pulse delay circuit , gate circuit | From:SeekIC

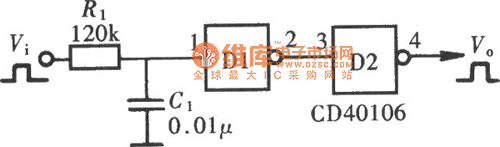

Pulse delay circuit will delay the output pulse that is relative to the input pulse for some time, but it will not change the width of the pulse. The main work principle of the circuit is to use the time delay function of the circuit. It delays the input pulse for a RC time. The figure shows the pulse delay circuit composed of gate circuit.
