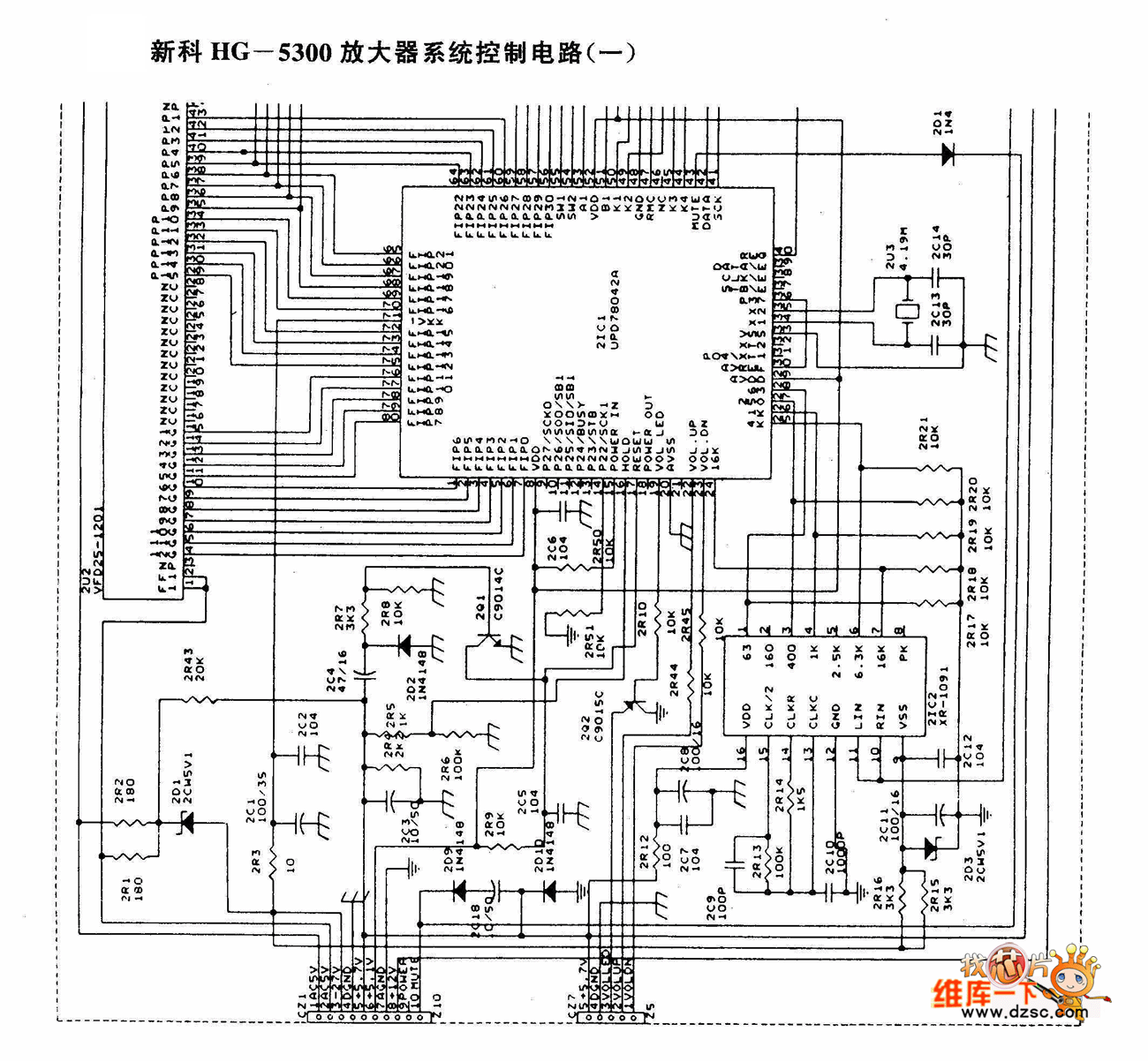

Shinco HG-5300 amplifier system control circuit (a)

Published:2011/7/4 10:59:00 Author:John | Keyword: amplifier system | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Control_Circuit/Relay_Control/Shinco_HG_5300_amplifier_system_control_circuit_a.html

Print this Page | Comments | Reading(3)
