SOLID_STATE_RELAY_CIRCUITS

Published:2009/6/17 22:41:00 Author:May | From:SeekIC

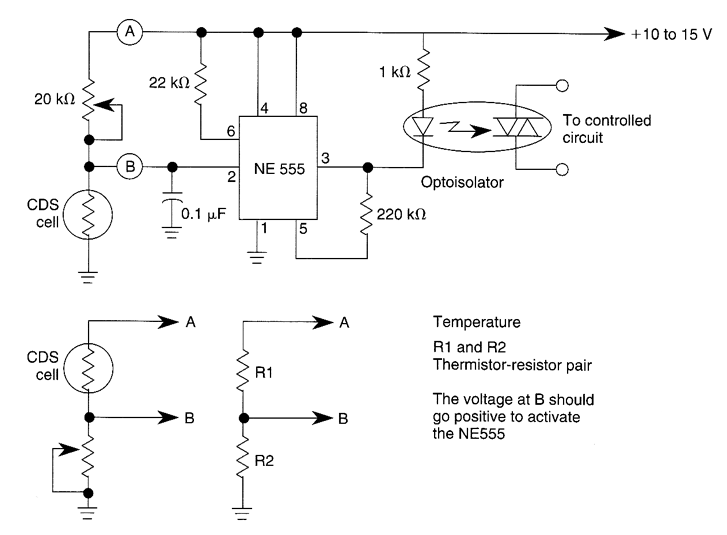

This dark-activated relay switch can be used to turn on walkway or other outdoor lighting at dusk. By using alternate connections to A and B, increasing illumination, high and low temperatures can be sensed.
