Liquid Level Controller (the 4th)

Published:2011/7/7 21:17:00 Author:Felicity | Keyword: Liquid Level Controller | From:SeekIC

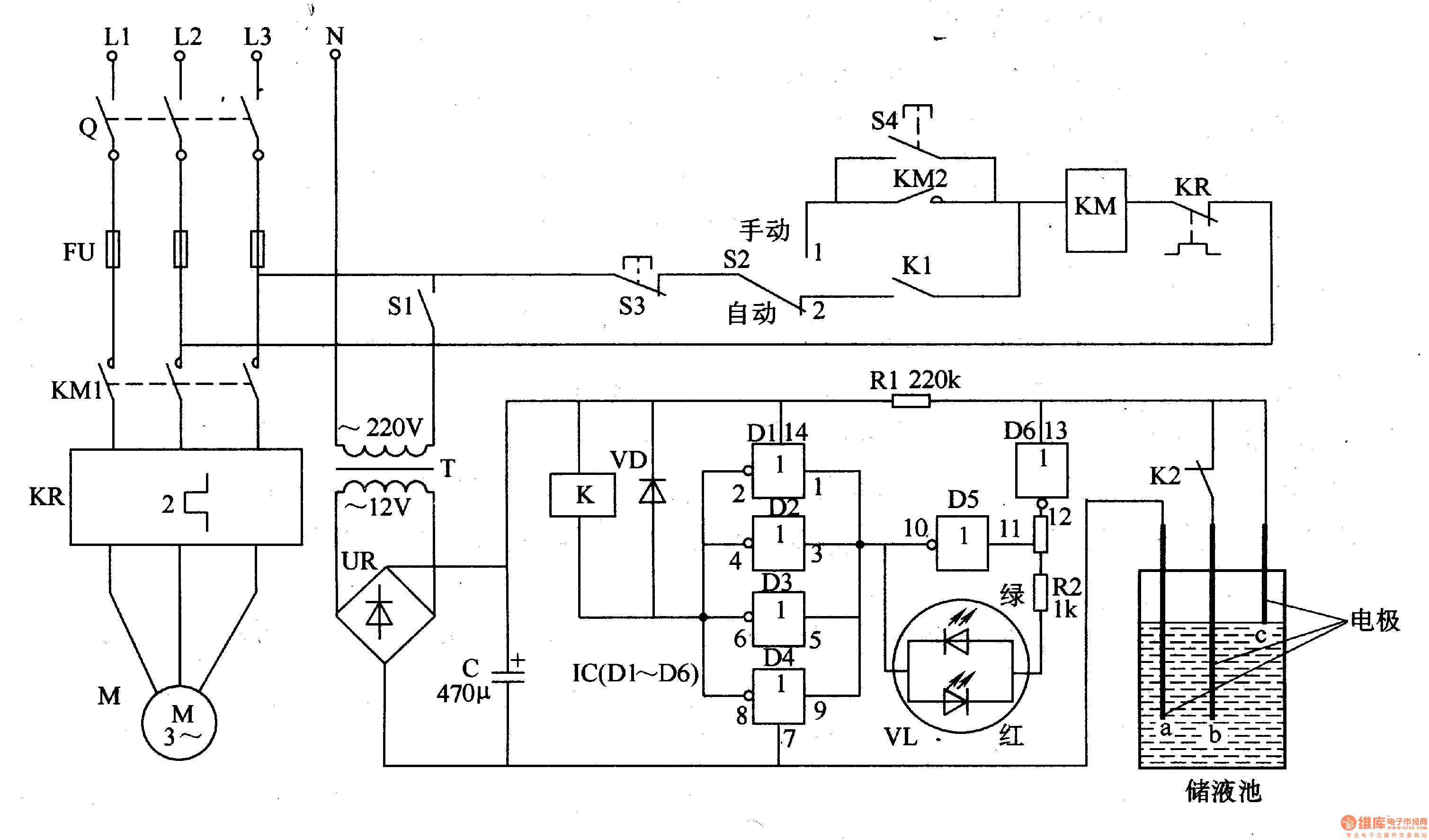

Work of the circuit The circuit consists of power supply circuit, liquid level detection control circuit and indication starting control circuit. (It is showed in picture 8-102.) Power supply circuit consists of Power transformer T, to bridge rectifier and filter capacitor C. Liquid level detection control circuit consists of Liquid level detection electrode a-c, six non-gate IC IC (D1-D6), resistors Rl, R2, relay K, color light-emitting diodes VL and diode VD. Indication starting control circuit consists of switch Q, fuse FUl-FU3, power switch Sl, manual / automatic control switch S2, the stop button S3, called the start button, AC contactors KM and thermal relays KR.
