ROCKET_ROLL_CONTROL

Published:2009/7/13 2:31:00 Author:May | From:SeekIC

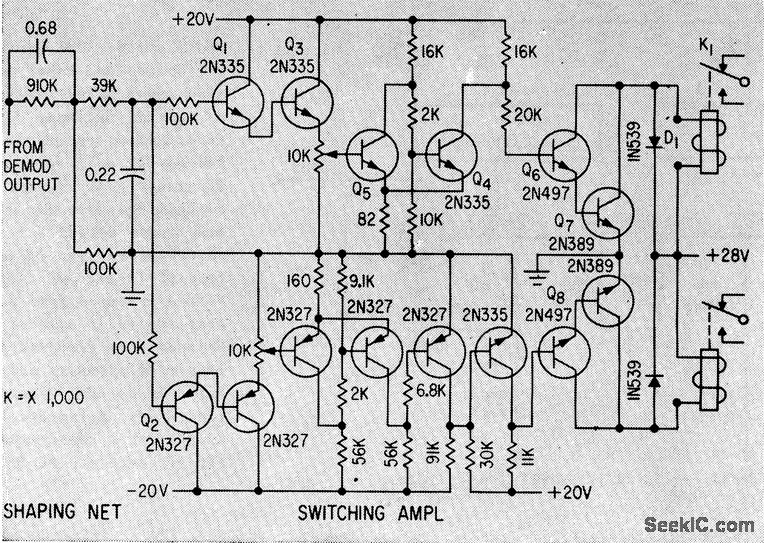

Signal from rollchannel demodulator is shaped for two-section switching amplifier that energizes roll jet relays.-R. E. King and H. Low, Solid-State Guidance For Able-Series Rockets, Electronics, 33:5, p60-63.
