ROBOTIC_MOTOR_CONTROL_CIRCUIT

Published:2009/7/17 4:11:00 Author:Jessie | From:SeekIC

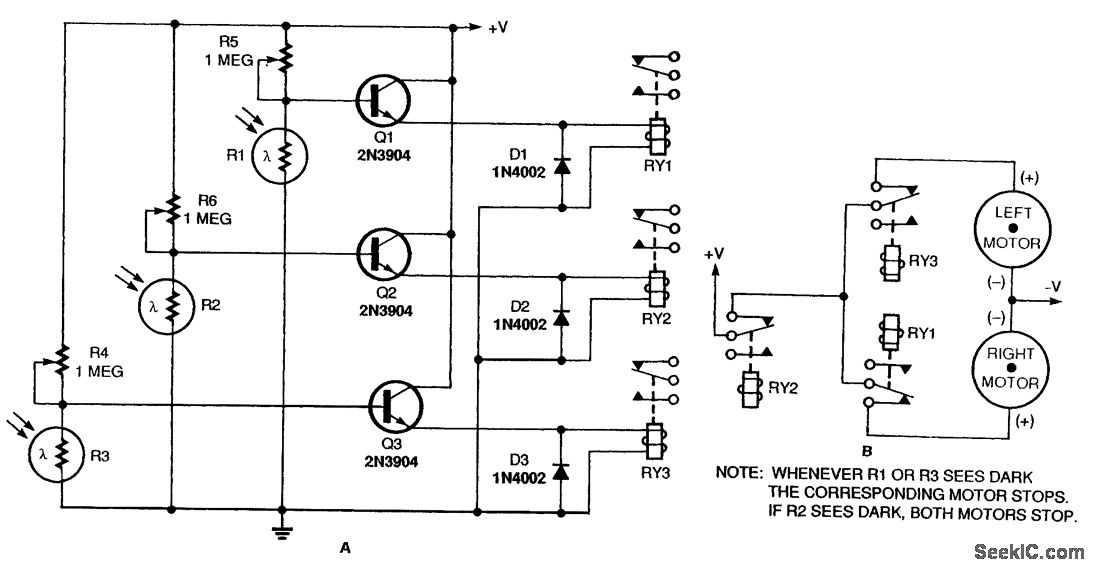

This circuit, with three light sensors and three relays, was used to allow a robot to follow a light beam. Loss of the beam causes relay actuation, which controls a motor that produces corrective action.
