RING_MODULATOR

Published:2009/7/22 1:08:00 Author:Jessie | From:SeekIC

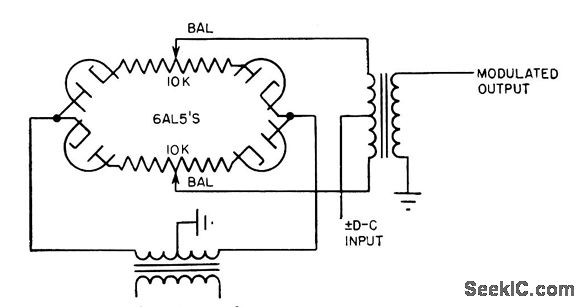

Can be operated with either input or output ungrounded. With 100-v rms carrier and d-c input of 30 v, output is linear up to 0.2 v rms. Null level is less than 1 mv, but drift stability is poor and balance is critical. Used in applications where modulation of error signal is re quired.-L. S. Klivans, Modulators for Automatic Control Systems, Electronics, 31:1, p 82-84.
