REVERSIBLE_HALF_WAVE_SPEED_CONTROL

Published:2009/7/22 1:57:00 Author:Jessie | From:SeekIC

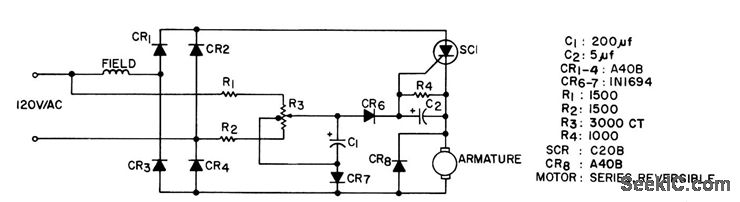

Simple circuit is adequate for majority of universal series-wound motor drive applications：Direction of ratation depends on which half-cycle scr conducts, since series fleld is in ac leg of bridge rectifier.- Silicon Controlled Rectifier Manual, Third Edition, General Electric Co., 1964, p 144.
