REMOTE_CONTROL_FOR_SERVO_POSITION

Published:2009/7/21 1:29:00 Author:Jessie | From:SeekIC

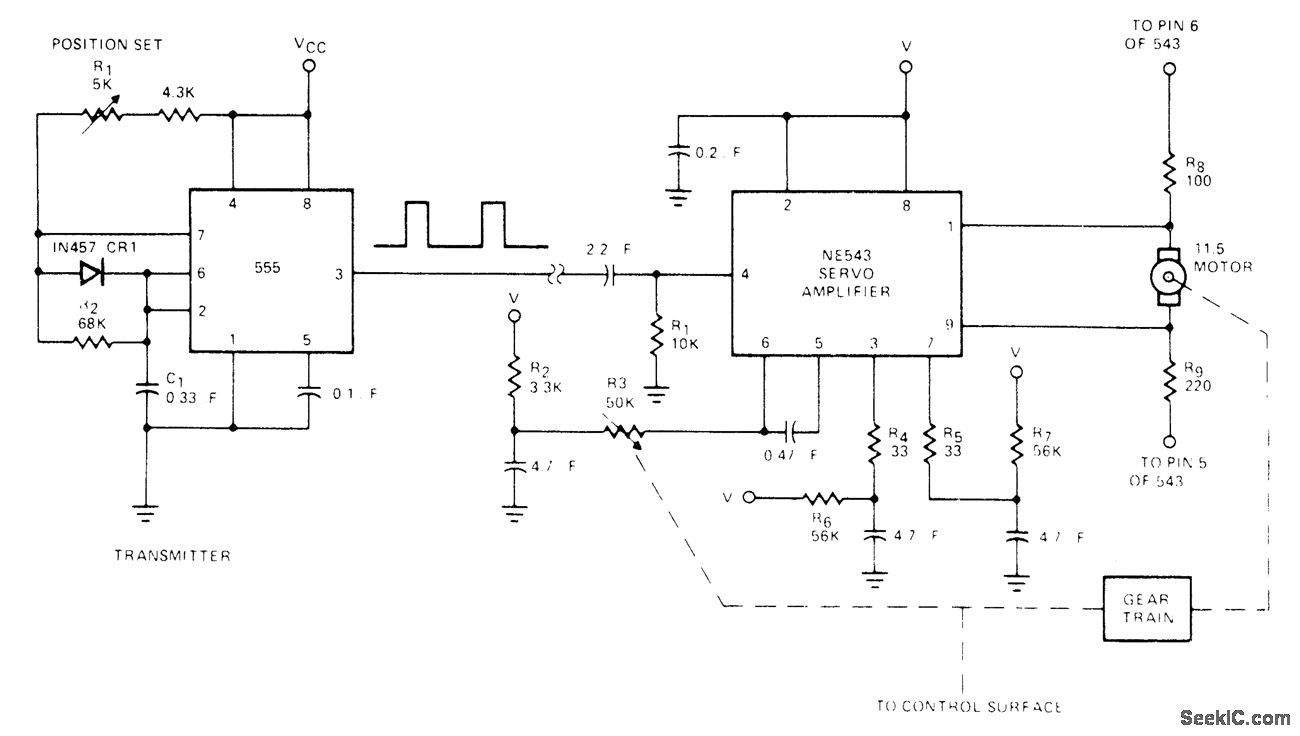

Setting of pot R, in circuit of remotely located 555 timer determines position of 11.5-ohm servomotor by feeding appropriate square-wave pulses over wire line to servoamplifier. - Signetics Analog Data Manual, Signetics, Sunnyvale, CA, 1977, p 727-728.
