TV lightning protection circuit diagram

Published:2011/9/25 21:29:00 Author:Ecco | Keyword: TV lightning protection | From:SeekIC

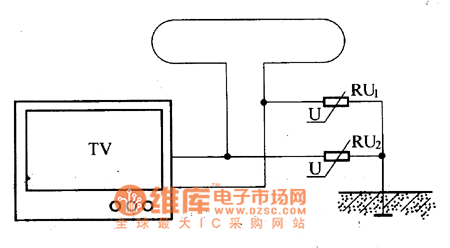

If you watch TV in thunderstorm days, lightning will damage the TV tuner by outdoor antenna. If you install the varistor in outdoor antenna, it may play a role on lightning protection. TV lightning protection circuit is shown as the chart, varistors can connect directly with the earth.
