POWER_PROTECTION_CIRCUIT

Published:2009/6/28 22:30:00 Author:May | From:SeekIC

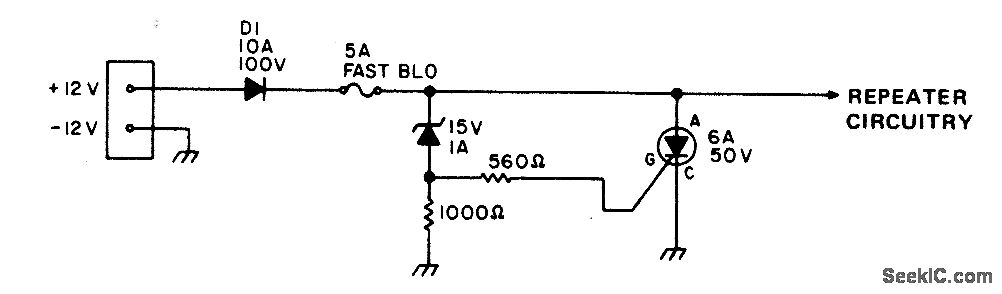

To safeguard portable, emergency power repeaters from reverse or excessive voltage, D1 prevents incorrect polarity damage, and zener voltage determines the maximum voltage that will reach the rest of the circuitry.Use fast blowing fuse rated greater than the SCR current rating.
