BATTERY_PACK_AND_REVERSE_POLARITY_PROTECTION

Published:2009/6/18 3:03:00 Author:May | From:SeekIC

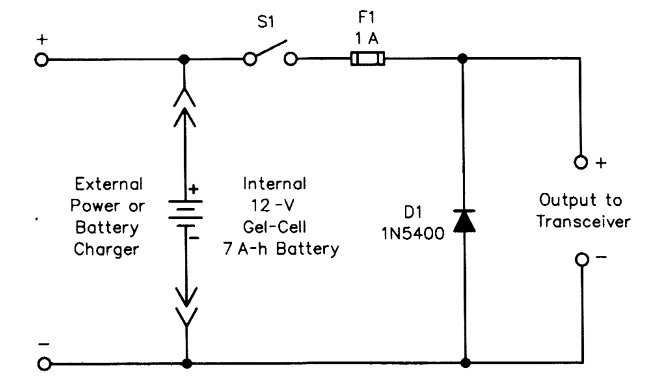

Schematic diagram and parts list for the reverse-polarity protection circuit D1 1N5400 silicon diodeF1 1-A fast-acting fuseS1 SPST rocker switch
