25 ohm speakers overload protection circuit diagram

Published:2011/5/10 1:17:00 Author:Rebekka | Keyword: speakers overload protection | From:SeekIC

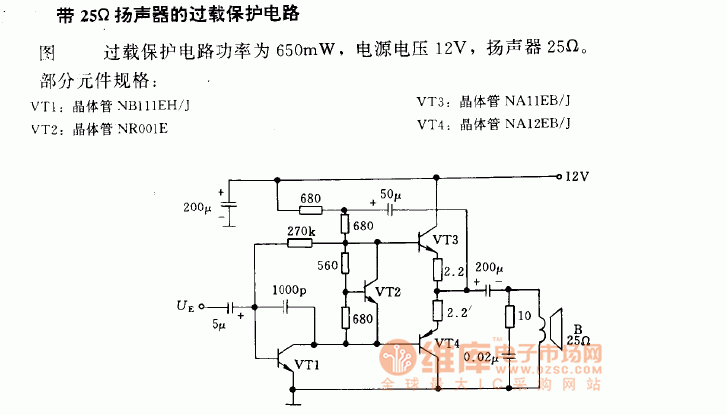

25 ohm speakers overload protection circuit diagramThe power of overload protection is 650mW, power supply voltage is 12V, speaker 25ohm.Part of the component specifications:VT1: Transistor NB111EH/JVT2: Transistor NR001ETV3: Transistor NA11EB/JVT4: Transistor NA12EB/J
