Polarity reversal drive circuit

Published:2011/4/6 21:30:00 Author:Nicole | Keyword: Polarity reversal drive | From:SeekIC

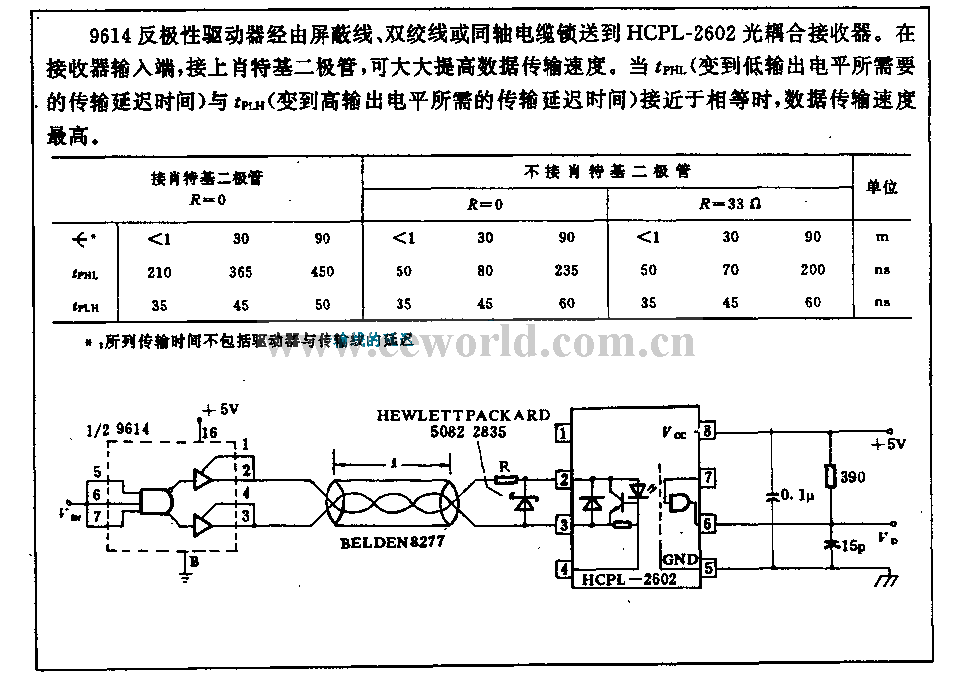

9614 polarity reversal driver is transported to HCPL-2602 Photo coupler receiver through shield wire, twisted-pair or coaxial cable. In receiver input terminal, to connect a Schottky diode, it can impove the data transmission speed greatly. When tPHL(transmission delay time of turning into low output level) and tPLH(transmission delay time of turning into high output level) is closed to equal, there is the maximum data transmission speed.
