PWM Motor Control

Published:2012/11/21 2:15:00 Author:muriel | Keyword: PWM , Motor Control | From:SeekIC

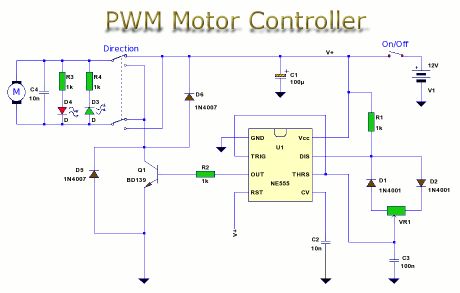

This is a circuit to control motor speed uses pulse width modulation (PWM). The PWM signal is generated by the ubiquitous 555 timer and output current amplified by a power transistor.
