PIN_DIODE_HIGH_SOLATION_SWITCH_CIRCUIT

Published:2009/7/14 2:07:00 Author:May | From:SeekIC

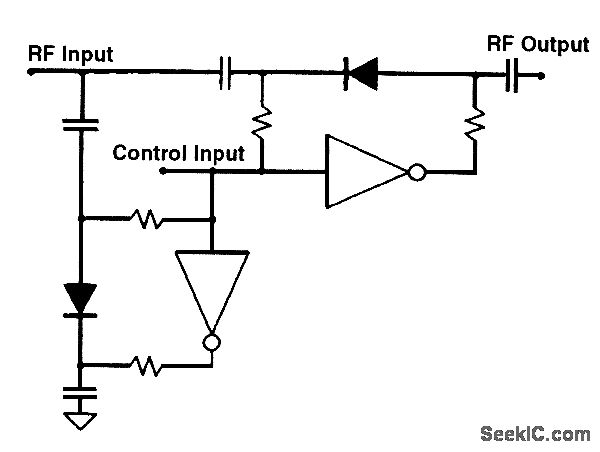

This circuit is a basic PIN-diode switch using series- and shunt-diode building blocks. R is chosen from Idiode=(Vcc-Vdiode)/R, where Idiode is the specified diode current and R is total dc circuit resistance.
