PHASE_SHIFTING_ANTENNAFIER

Published:2009/7/20 6:59:00 Author:Jessie | From:SeekIC

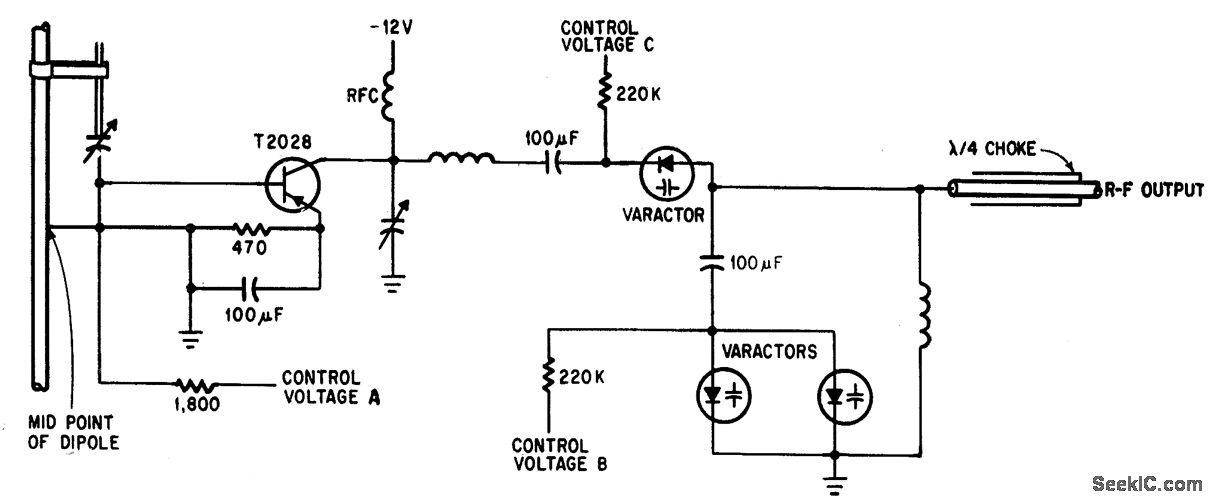

Control voltages A,B, and C together produce up to 180°phase shift with adequate matching, for beam-steering arrays. Ganged potentiometers with appropriately tapered windings can provide the control voltages and relate beam position to shaft rotation.-J. F. Rippin, Making the Antenna an Active Partner, Electronics, 38:16, p 93-96.
