PHANTASTRON_AFC

Published:2009/7/15 3:59:00 Author:Jessie | From:SeekIC

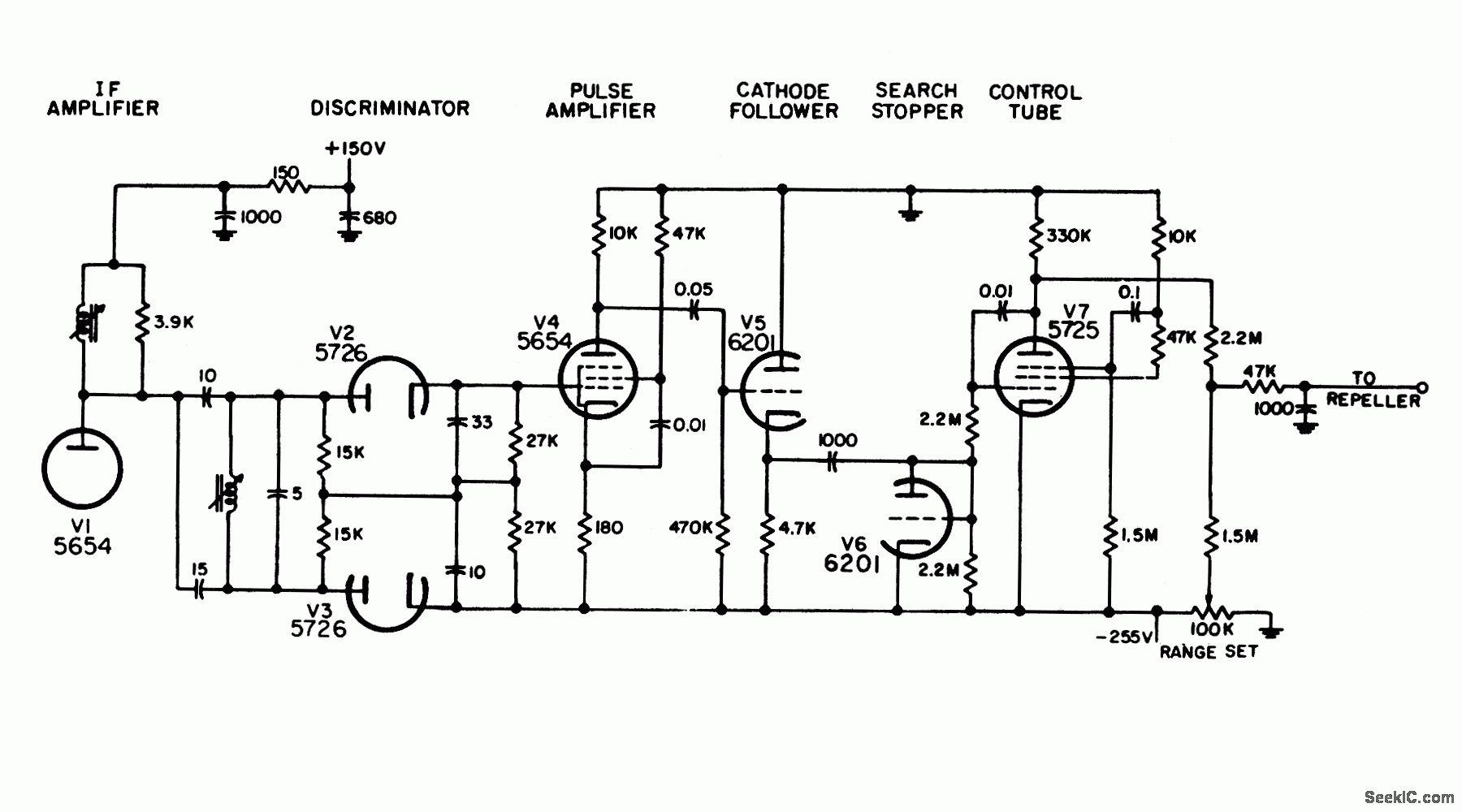

Pentode is astable phantastron during radar search, and d-c amplifier during lock-on when pentode furnishes direct control of klystron repeller.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube circuits, 1963,p N13-6
