PASSIVE_TONE_CONTROL_CIRCUIT

Published:2009/7/7 5:35:00 Author:May | From:SeekIC

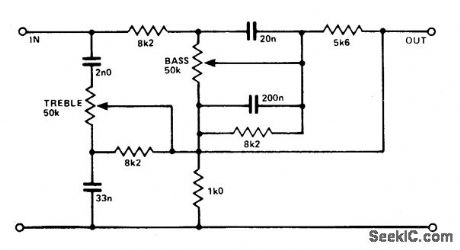

A simple circuit using two potentiometers and easily available standard value components provides tone control. The impedance level is suitable for low-level transistor or op amp circuitry.
