Oven_temperature_controller_with_RTD_sensor

Published:2009/7/24 2:57:00 Author:Jessie | From:SeekIC

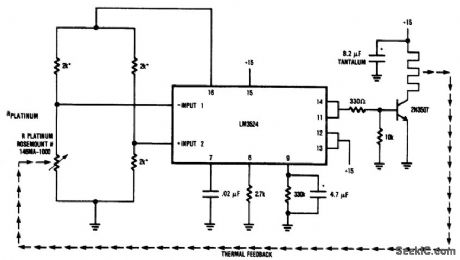

Fig. 13-34 This circuit is similar to that of Fig, 13-27, except that the sensor is a platinum RTD. If the sensor is in close thermal contact with the heater, the circuit will easily control to 0.1℃ stability over widely varying ambient temperatures. National Semiconductor, Linear Applicatrions Handbook 1991 p 858.
