Op_amp_offset_adjustment_inverting

Published:2009/7/24 22:39:00 Author:Jessie | From:SeekIC

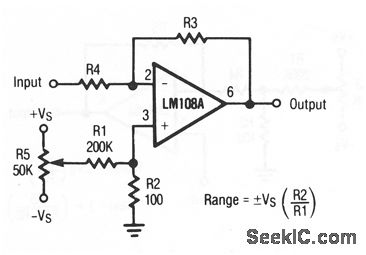

Although this circuit applies specifically to an LM108A, the values and equations can be adapted to virtually any op amp connected in the inverting configuration.
