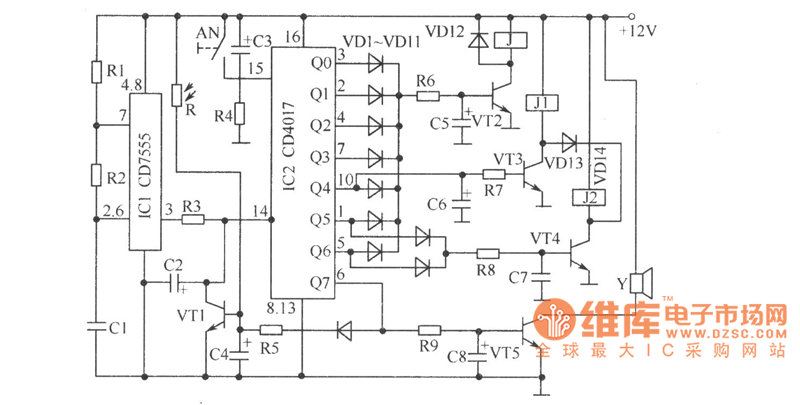

Oil furnace control circuit composed of the common integrated block

Published:2011/6/8 20:42:00 Author:Christina | Keyword: Oil furnace, control circuit, common, integrated block | From:SeekIC

This circuit can be used as the controller of the small oil furnace. Previous small oil furnace controller uses the integrated block of application-specific integrated block or the microcontroller, they are difficult to buy in the small and medium size cities, so the maintenance is difficult. This small oil furnace controller has the features of reliable performance, simple structure, low cost and convenient maintenance, we can use it in any kinds of oil furnaces by changing the connection mode.
