Off_on_control_of_a_triac_with_programmable_hysteresis

Published:2009/7/21 22:13:00 Author:Jessie | From:SeekIC

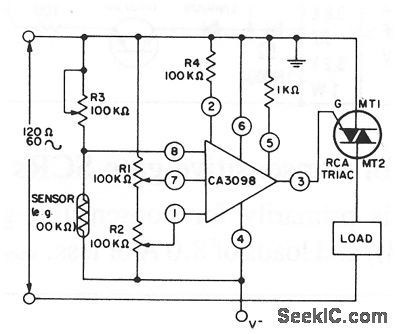

This circuit shows control of a triac with a CA3098 programmable Schmitt trigger. R1 and R7 set the low and high reference voltages, respectively, while R3 sets the control-signal level from the sensor.
