OVER_UNDER_TEMPERATURE_MONITOR

Published:2009/7/21 21:30:00 Author:Jessie | From:SeekIC

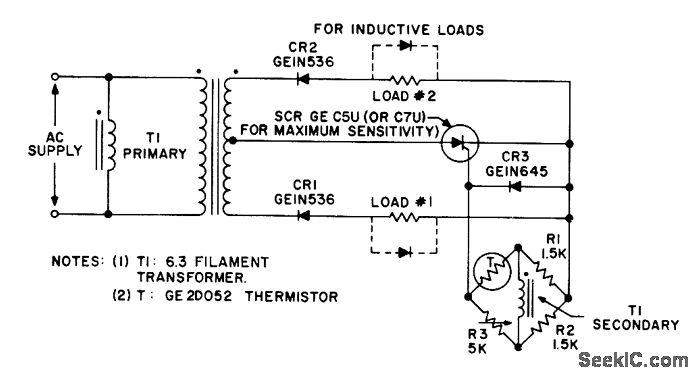

Dual output can be used to drive high and low temperature indicator lamps or relays. Balanced bridge may also be used to trigger conventional scrload combinations.- Silicon Controlled Rectifier Manual, Third Edition, General Electric Co., 1964, p 120.
