OVERLOAD_PROTECTION_WITH_TD

Published:2009/7/21 10:26:00 Author:Jessie | From:SeekIC

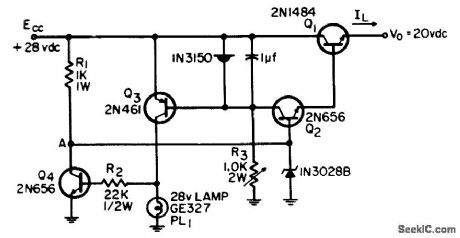

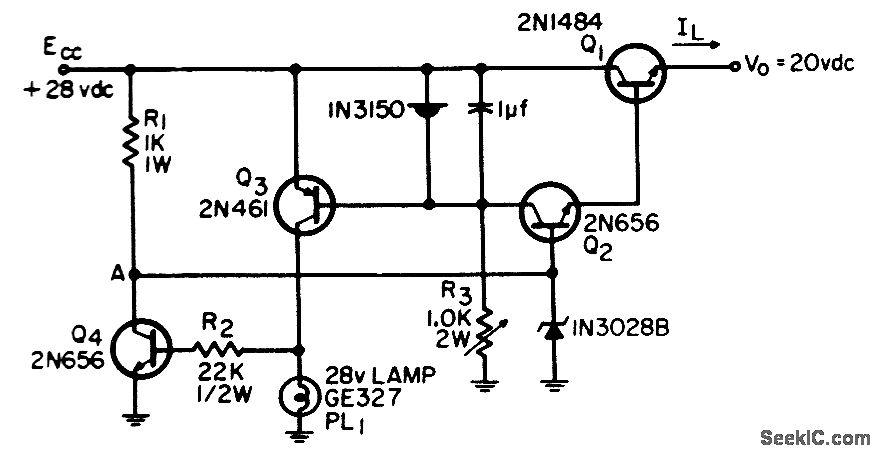

Tunnel diode-transistor level detector reduces load current of series voltage regulator to zero when preset limit is exceeded. Protective circuitry consists of TD1, PL1, R2, R3, Q3, and Q4.-G. E. Bloom, Overload Protection with a Tunnel Diode, EEE, 12:10, p 60 and 75.
