ONE_TUBE_SQUELCH

Published:2009/7/22 1:34:00 Author:Jessie | From:SeekIC

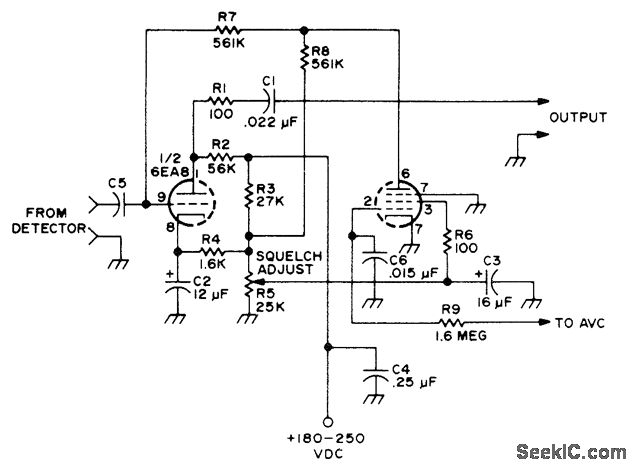

Designed for insertion between second detector and AF volume control in tube-type AM receiver having AVC and well-filtered DC supply, to suppress noise when there is no input signal, such as when tuning between stations.-Circuits, 73Magazine, May 1977, p 31.
