NJM2048 switching regulator control circuit (positive output)

Published:2011/6/30 20:47:00 Author:Lucas | Keyword: switching , regulator , control circuit , positive output | From:SeekIC

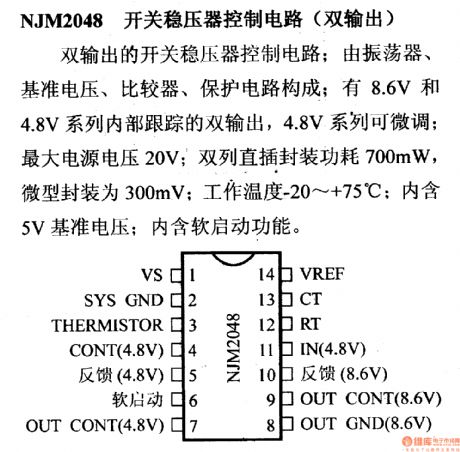

NJM2048 switching regulator control circuit (positive output), main features and pin of DC-DC circuit and power monitor NJM2048 switching regulator control circuit (dual output) It is the dual-output switching regulator control circuit; it is composed of the oscillator, voltage reference, comparator, protection circuit; it has 8.6V and 4.8V series of internal tracking , 4.8V series can be fine-tuning; maximum supply voltage is 20V; dual-row DIP package power is 700mW, micro-encapsulation is 300mV; Operating temperature is -20 ~ +75 ℃; it includes 5V reference voltage and soft-start function.
