NEON_LAMP_CAPACITOR_DISCHARGER

Published:2009/7/24 4:10:00 Author:Jessie | From:SeekIC

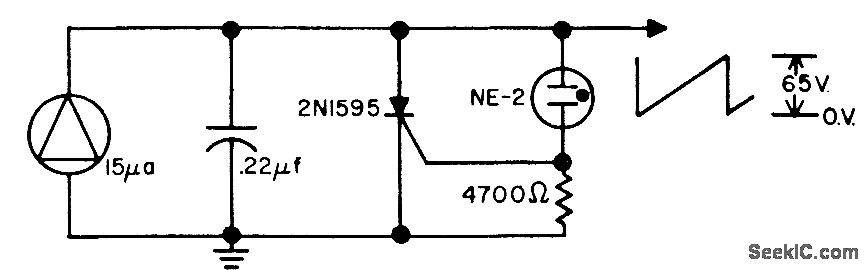

Used to discharge capacitor being charged from constant-current source providing about 15 microamp. Circuit has extremely high impedance until breakdown, then low enough impedance to discharge capacitor to fraction of volt.-R. W. Biddlecomb, High-Current Switch Has High ON/OFF Z Ratio, EEE, 12:2, p 29.
