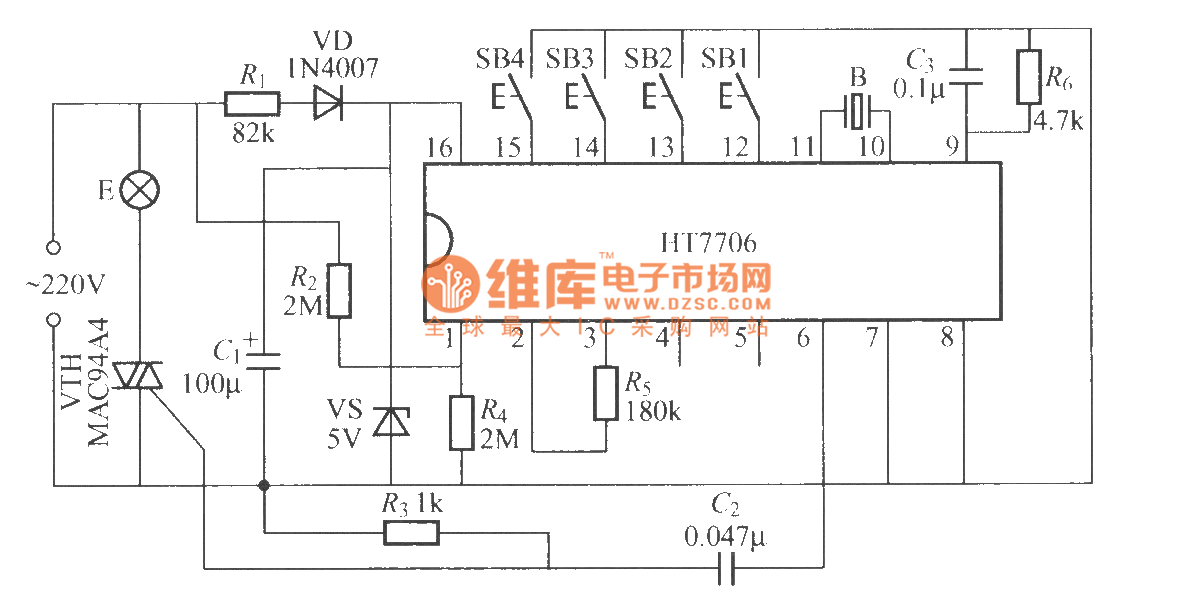

Multifunction dimming light circuit with special integrated circuit(HT7706)

Published:2011/4/27 9:23:00 Author:Nicole | Keyword: dimming light | From:SeekIC

This is a multifunction dimming light circuit with special integrated circuit, it hasfour kinds of dimming functions, they are stepless, step dimming, delay to douse the light and cycle automatic turn-off light. Buses φ27mm ordinary piezoceramics, the other component parameters is as shown, there is no special requirements.
