Multi Control Switch Circuit Composed of CD4017

Published:2011/7/27 5:37:00 Author:Sue | Keyword: Multi Control, Switch | From:SeekIC

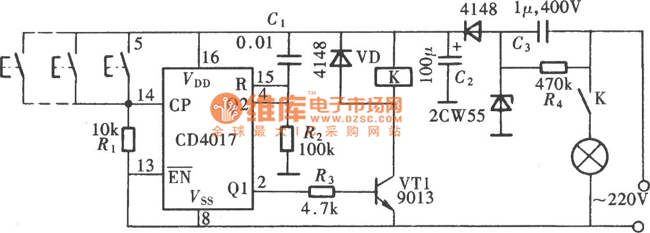

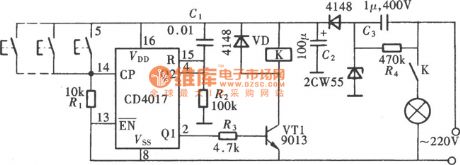

The picture shows the multi control single bond control switch circuit. Usually, we always use bistable flip-flop to compose a switch control circuit which can be on as well as be off.
