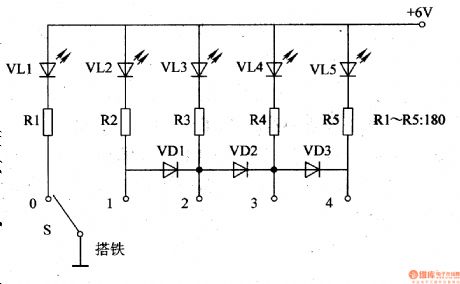

VL1 is neutral LED indicator. VL2-VL5 are gear 1-4 LED indicators respectively.
+V terminal is connected with the motorcycle's neutral LED's power.
When the switch is on, it is in neutral. Only the neutral LED indicator VL1 is illuminated. VL2-VL5 are not illuminated.
When the motorcycle is in gear 1, S's moving contact and 1 terminal are connected together. VL2 is illuminated while VL1 is off.
When the motorcycle is in gear 2, S's moving contact and 2 terminal are connected together. VD1 is connected. VL2 and VL3 are both illuminated.
When the motorcycle is in gear 3, S's moving contact and 3 terminal are connected together. VD1,VD2 are both connected. VL2-VL4 are all illuminated.
When the motorcycle is in gear 4, S's moving contact and 4 terminal are connected together. VD1-VD3 are all connected. VL2-VL5 are all illuminated.
