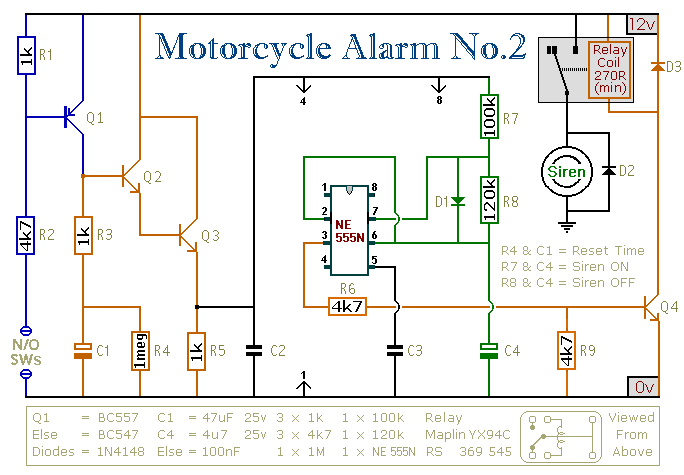

Motorcycle Alarm No. 2

Published:2012/11/19 1:26:00 Author:muriel | Keyword: Motorcycle Alarm | From:SeekIC

This circuit features an intermittent siren output and automatic reset. It can be operated manually using a key-switch or a hidden switch; but it can also be wired to set itself automatically when you turn-off the ignition. By adding external relays you can immobilize the bike, flash the lights etc. Ron has used my Asymmetric Timer as the basis for his design.
