Motorcycle Alarm No.7

Published:2012/11/19 21:31:00 Author:muriel | Keyword: Motorcycle Alarm | From:SeekIC

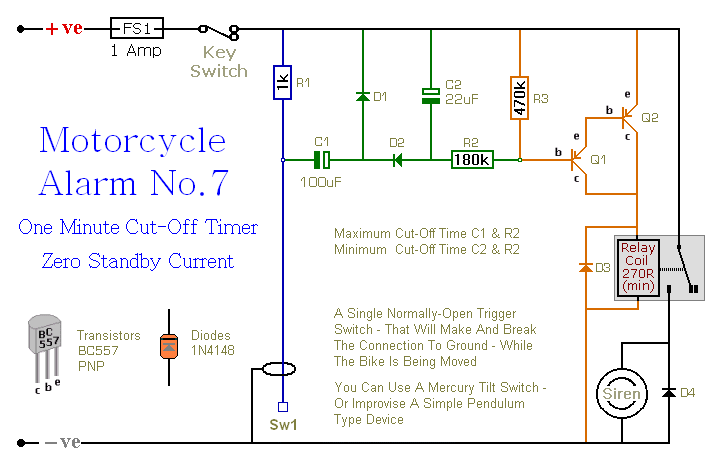

This is a simple motorcycle alarm - with a time limit on the siren. While the thief continues to move the bike - and the normally-open trigger switch continues to open and close - the siren will continue to sound. When the bike stops moving - the siren will cut-off. If Sw1 is open when the thief abandons the bike - the siren will shut off after about ten seconds. If the switch is closed when the bike is abandoned - the siren will turn off after about a minute. Any subsequent movement will re-activate the alarm.
