OOK 315MHz Emitter Module Circuit Diagram

Published:2011/6/19 3:54:00 Author:Vicky | Keyword: OOK 315MHz Emitter Module | From:SeekIC

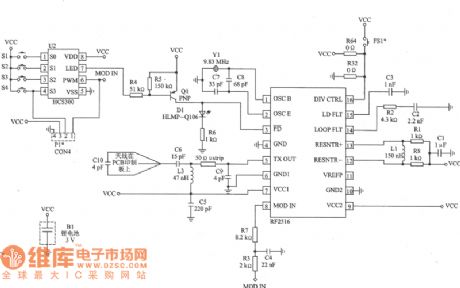

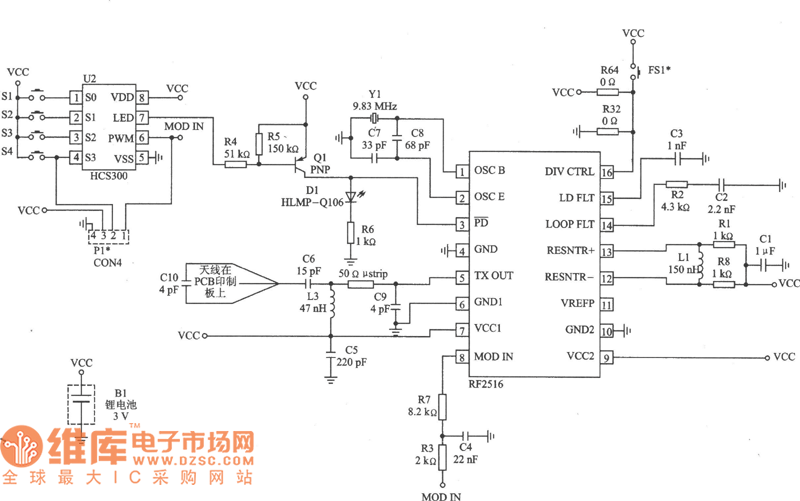

DKl000T is an emitter module composed by RF2516 and roll-code encoding device. Correspondingreceptor module is DKl000R. DKl000T is suitable to be applied in keyless-entering system, wireless safe system, remote monitoring and remote control. Main technical features are listed as follows: ·Operating frequency: 315MHz; ·Modulation mode of 00K; ·Roll-code encoding; ·LED indicator; ·Output power: 70 dBμV／m 5; ·Voltage of power supply: 2～3 V ; ·Dissipation of current: 4～9 mA; · Printing the antenna in the printing board. Applied circuit of DKl000T module 315Hhz
