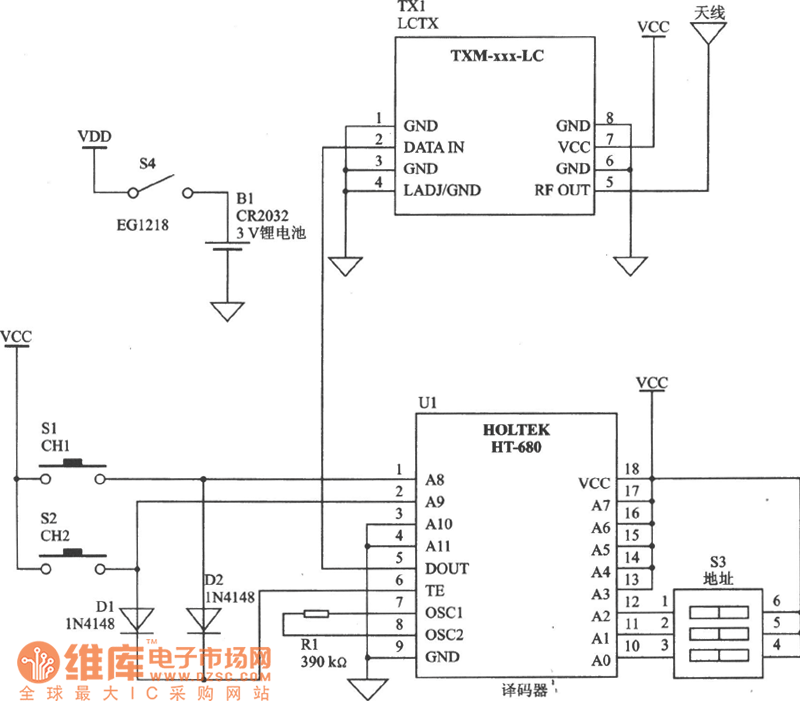

MHz-LC Series Emitter Module Circuit Diagram

Published:2011/6/19 4:21:00 Author:Vicky | Keyword: MHz-LC Series Emitter Module | From:SeekIC

TXM-433/418/315 MHz-LC series module is a low-cost emitter module. It is used with LC series receptor and can transmit analog and digital signal for over 91.5 min (300 ft). LC series requires no tuning device or exterior RF components (except antenna). It is available to be applied in fields such as remote control, remote monitoring, industry process monitoring, periodic data transfer, illuminator control, safe/fire alarm, keyless typing system, medical monitoring/calling system and wireless data transfer etc. Main technical features are listed as follows: ·Work frequency: 433／418／315 MHz; 　　·Direct analog or digital input; 　　·Data transfer rate: greater than 5 Kb／s； 　　·Voltage of power supply: 2.7～5.2 V; 　　·Maximum work current: 6MA, sleep mode current: l.5 μA; 　　·Output power: -4～4 dBm; ·Direct series interface.
