Minimizing_phase_distortion_

Published:2009/7/23 22:17:00 Author:Jessie | From:SeekIC

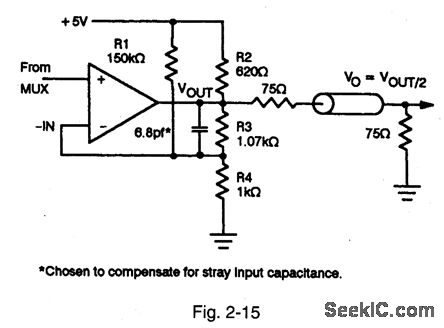

Figure 2-15 shows a circuit used to minimize phase distortion at a mux output. MAXIM HIGH-RELIABILITY DATA Book, 1993, P. 1-46.
