MEMORY_DRIVER_AMPLIFIER

Published:2009/7/24 4:08:00 Author:Jessie | From:SeekIC

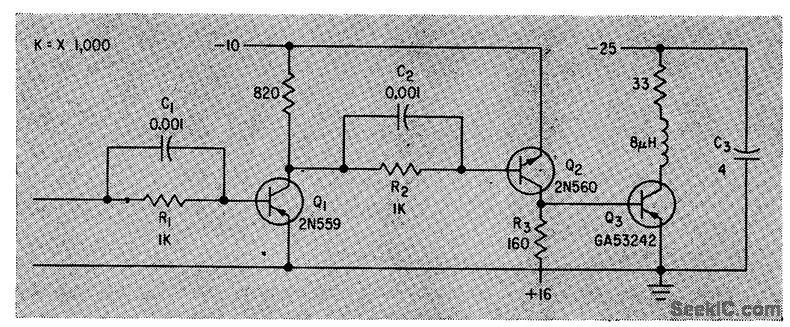

Proves 750-ma current pulse for 8-mkrohenry load, at repetition role of 0.25 Mc. Positive turnoff voltage is automatically applied, with no extra loss in gain or power, by driving pnp transistor Q3 with npn transistor Q2.-J. S. Ronne, Computer Switching With High-Power Transistors, Electronics, 33:10, p 44-47.
