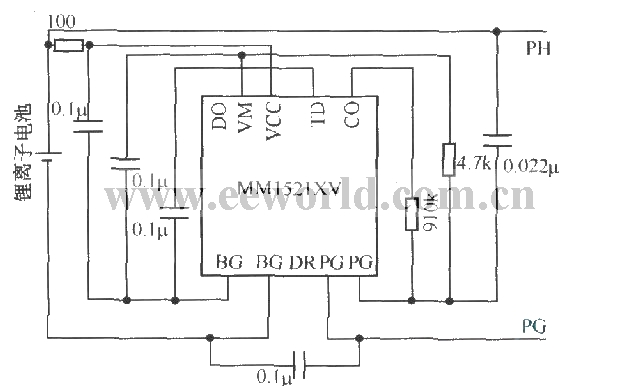

MCP component MMl521XV internal block diagram and protection circuit

Published:2011/4/25 3:33:00 Author:Nicole | Keyword: MCP component | From:SeekIC

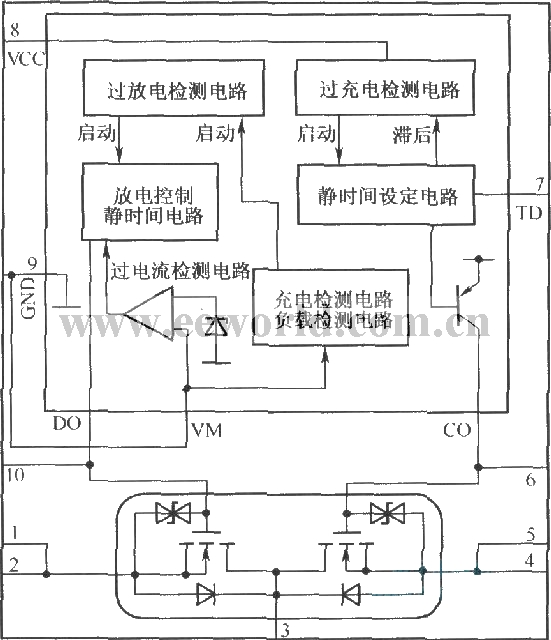

MCP is a multi-package produce, it can put the integrated protection circuit and charge-discharge circuit into the same package. The internal block diagram is shown as below:
