MC6338 fan single chip microcomputer integrated circuit

Published:2011/6/9 1:19:00 Author:Christina | Keyword: fan, single chip, microcompute, integrated circuit | From:SeekIC

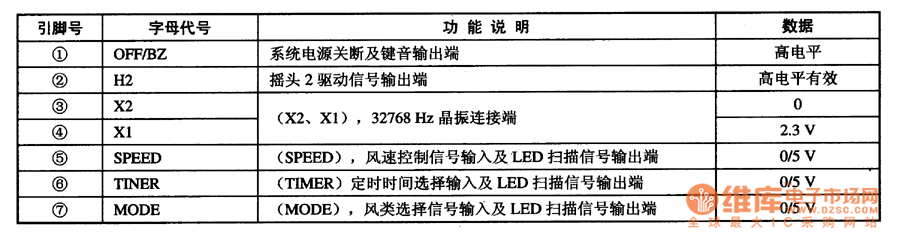

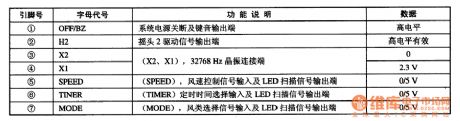

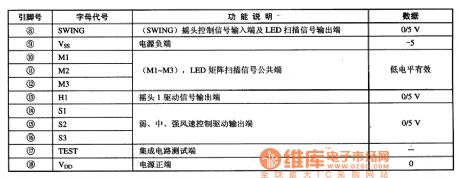

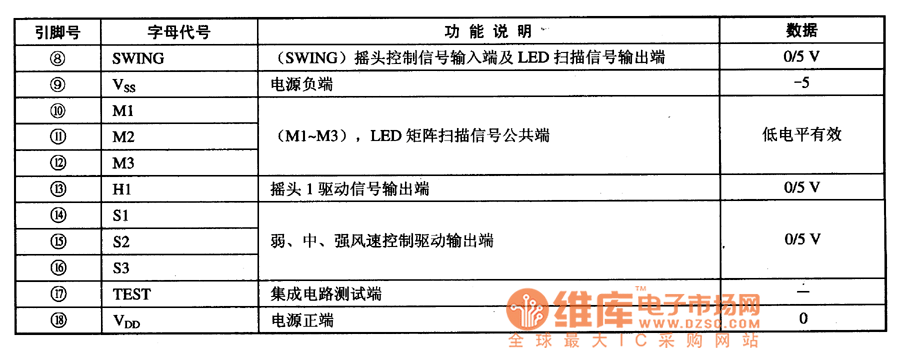

The MC6338 is designed as one kind of fan single chip microcomputer integrated circuit that is produced by the MOTOROLA company, and it can be used in the fan program-controlled systems. The MC6338 is in the 18-pin dual-row DIP package, the typical application is as shown in the figure, the pin functions and data is as shown in the table. The typical application circuit of the MC6338 The pin functions and data of the MC6338
