Loudness Control

Published:2012/11/21 1:49:00 Author:muriel | Keyword: Loudness Control | From:SeekIC

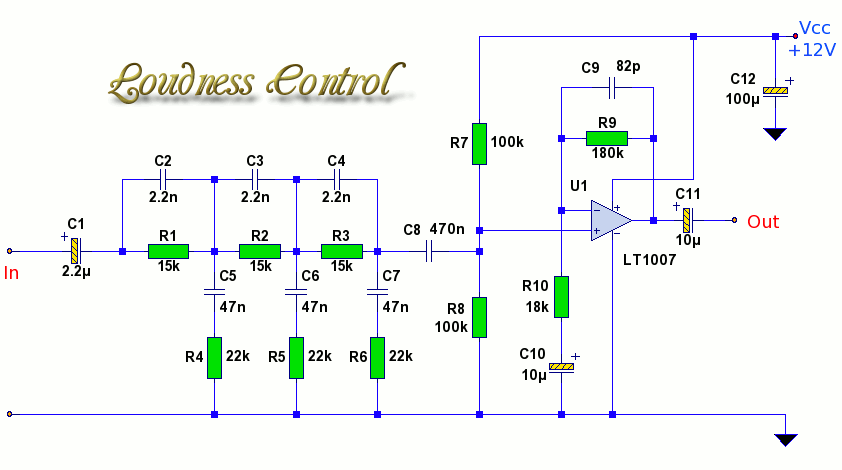

When listening to music at low volume levels, bass and treble frequencies are attenuated more than mid frequencies. This loudness control alters the frequency response curve to correspond roughly with the equal loudness characteristic of the ear. The circuit shown, is for a single channel, so for a stereo system, two such units should be built. This circuit has a boost of 13dB at 20Hz and approximately 9dB at 20kHz.
